EXPERT PRESS IV

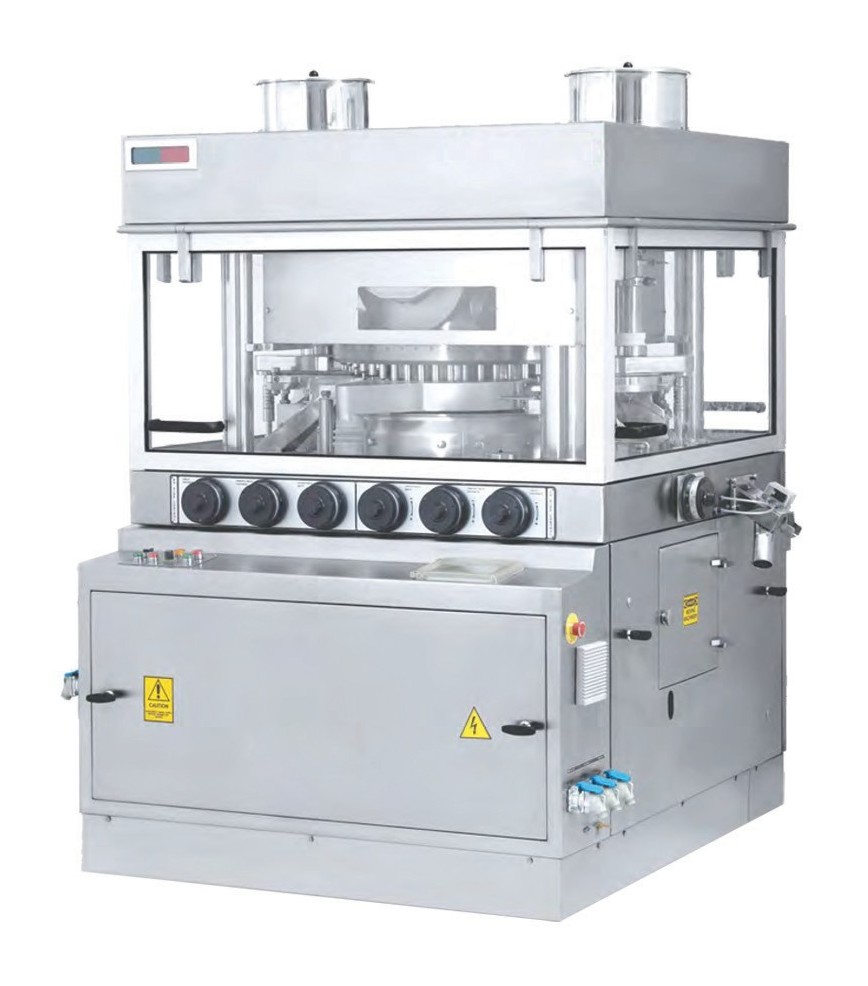

EXPERT PRESS IV – High Speed Tablet Press
EXPERT PRESS IV is a double sided high speed tableting press with a Pre-Compression System. It is one of the most advanced machine in its class with improved sound reduction ,operator safety, cleanliness & cleanability and operation convenience. The machine is extremely reliable and is offered in four different turret configurations (45,55,69 & 75 stations) with maximum rated output of 540,000 tablets / hour.
CFC – Compaction Force Control System available as an option
| Machine Type | EXPIV-45 | EXPIV-55 | EXPIV-69 | EXPIV-75 |
|---|---|---|---|---|
| No. of station | 45 | 55 | 69 | 75 |
| Type of tooling | D | B | BB | BB |
| Max. rated output (tablets/hour)* | 324,000 | 396,000 | 497,000 | 540,000 |
| Min. rated output (tablets/hour)* | 65,000 | 79,000 | 99,000 | 108,000 |
| Max. compaction force (kN) | 100 | 65 | 65 | 65 |
| Max. compaction force (Tons) | 10 | |||
| Max. Tablet diameter (mm) | 25 | 16 | 13 | 13 |
| Max. Depth of die fill (mm) | 20 | 17 | 17 | 17 |
| Max. Tablet thickness (mm) | 8 | |||
| Upper punch penetration (mm) | 3 to 6 | |||
| Main ele. motor (kW / hp) | 7.5 / 10.0 | |||
| Power consumption (kW / hp) | 8.75 / 11.7 | |||
| Power supply: 220 / 380 / 415 / 480 V ± 10%, 3 Ph., 50 / 60 Hz | ||||
| Overall dimensions (cm) | 156 W x 161 D x 196 H | |||
| Net weight (kg) | 3745 | |||
| Case dimensions (cm) | 196 W x 219 D x 226 H | |||
| Gross weight (kg) | 4085 | |||
