EXPERT PRESS IIA
EXPERT PRESS IIA – New Dimension for Performance and Economy

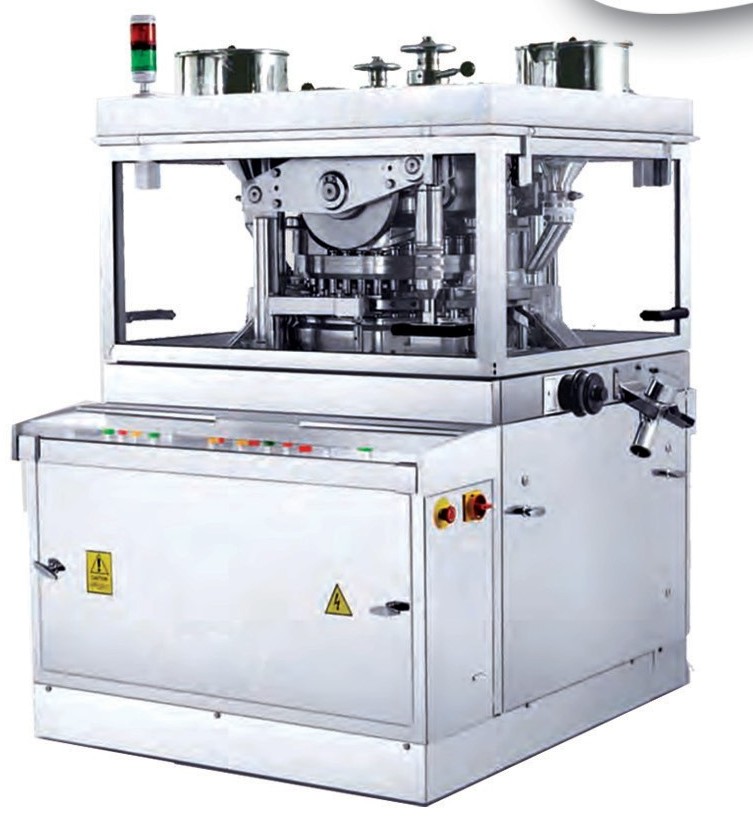

EXPERT PRESS IIA is a double sided high speed tableting press. It is one of the most advanced machine in its class with improved sound reduction , operator safety, cleanliness & cleanability and operation convenience. The machine is extremely reliable and is offered in four different turret configurations (37, 45, 55 & 61 stations) with maximum rated output of 439,200 tablets / hour.
| Machine Type | EXPIIA-37 | EXPIIA-45 | EXPIIA-55 | EXPIIA-61 |
|---|---|---|---|---|
| No. of station | 37 | 45 | 55 | 61 |
| Type of tooling | D | B | BB | BB |
| Max. rated output (tablets/hour)* | 266,400 | 324,000 | 396,000 | 439,200 |
| Min. rated output (tablets/hour)* | 53,280 | 64,800 | 79,200 | 87,840 |
| Max. compaction force (kN) | 100 | 65 | 65 | 65 |
| Max. Tablet diameter (mm) | 25 | 16 | 13 | 13 |
| Max. Depth of die fill (mm) | 20 | 17 | 17 | 17 |
| Max. Tablet thickness (mm) | 8 | |||
| Upper punch penetration (mm) | 3 to 6 | |||
| Main ele. motor (kW / hp) | 5.5 / 7.5 | |||
| Power consumption (kW / hp) | 6.7 / 9.0 | |||
| Power supply: 220 / 380 / 415 / 480 V ± 10%, 3 Ph., 50 / 60 Hz | ||||
| Overall dimensions (cm) | 157 W x 143 D x 192 H | |||
| Net weight (kg) | 2500 | |||
| Case dimensions (cm) | 165 W x 183 D x 221 H | |||
| Gross weight (kg) | 2835 | |||
