EXPERT D4

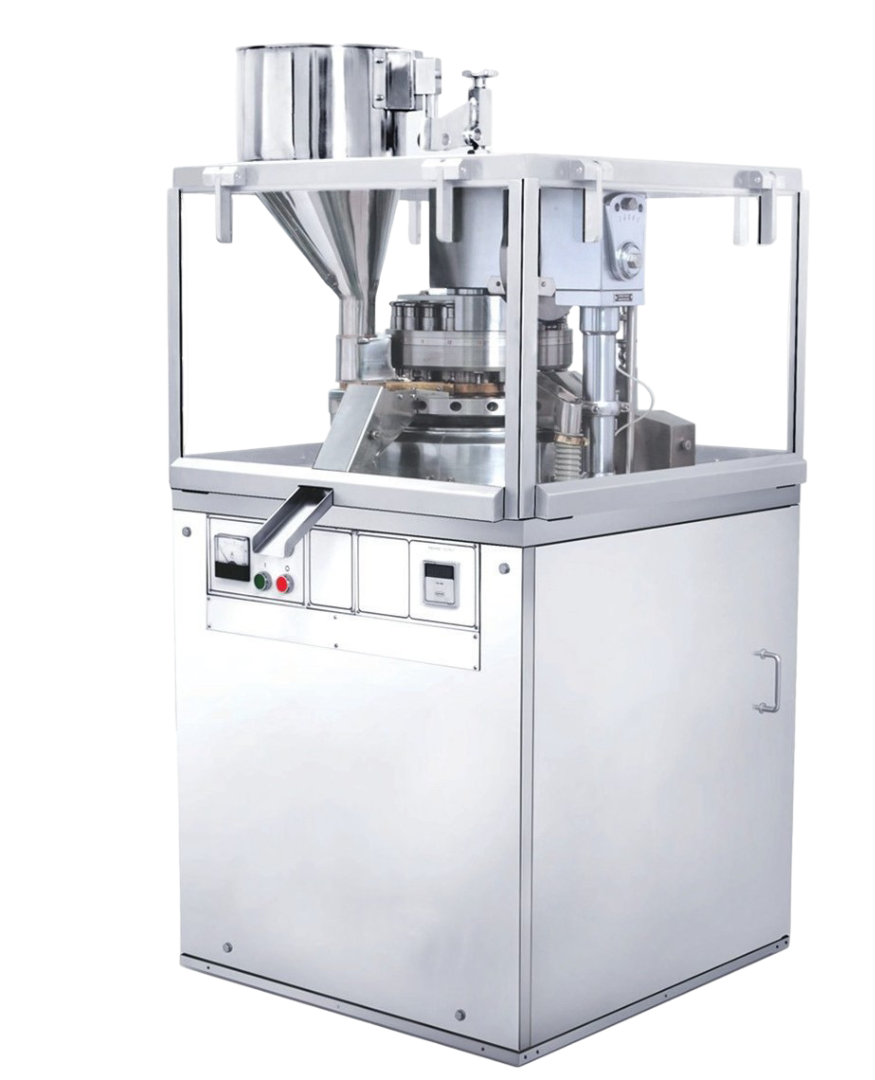

EXPERT D4 – Single Sided Rotary Tablet Press
The Mini Rotary Tablet Press Machine is a compact, high-precision tablet compression solution tailored for small-scale production, R&D labs, and pilot batch manufacturing. Engineered for consistent performance, it delivers uniform tablets with excellent finish while meeting stringent pharmaceutical manufacturing standards. Designed with cGMP compliance in mind, the machine combines reliability, ease of use, and minimal maintenance, making it the perfect choice for businesses looking to scale up from manual or single-punch machines.
EXPD4 is a GMP, single rotary tablet press with max tablet output of 63000 tablets/hour. It is available in two variants as EXPD4-20 & 25 stations for pharma industry and EXPD4-12 stations with 30 mm depth of fill for veterinary industry (Bolus tablets).
| Machine Type | EXPD4-20 | EXPD4-25 | EXPD4-12 |
|---|---|---|---|
| No. of station | 20 | 25 | 12 |
| Type of tooling | D | B | Special |
| (i) Punch Barrel Dia | Standard | Standard | 1.500″ (38.10 mm) |
| (ii) Upper Punch Length | Standard | Standard | 5.260″ (133.60 mm) |
| (iii) Lower Punch Length | Standard | Standard | 6.000″ (152.40 mm) |
| (iv) Die Diameter | Standard | Standard | 2.000″ (50.80 mm) |
| (v) Die Height | Standard | Standard | 1.375″ (34.92 mm) |
| Rated Output (tablets/hour)* | 22,800 to 50,400 | 28,500 to 63,000 | 9,000 to 12,300 |
| Max. Operating pressure (Tons) | 10 | 6.5 | 10 |
| Max. Tablet diameter (mm) | 25 | 16 | 36 |
| Max. Depth of die fill (mm) | 20 | 17 | 30 |
| Max. Tablet thickness (mm) | 8 | 8 | 13 |
| Upper punch penetration (mm) | 3 to 6 | 3 to 6 | 3 to 6 |
| Main ele. motor (kW / hp) | 2.2 / 3.0 | 2.2 / 3.0 | 3.7 / 5.0 |
| Power consumption (kW / hp) | 2.2 / 3.0 | 2.2 / 3.0 | 3.7 / 5.0 |
| Power supply: 220 / 380 / 415 / 480 V ±10%, 3 Ph., 50 / 60 Hz | |||
| Overall dimensions (cm) | 97 W x 112 D x 181 H | 97 W x 112 D x 184 H | |
| Net weight (kg) | 1214 | ||
| Case dimensions (cm) | 130 W x 135 D x 208 H | ||
| Gross weight (kg) | 1400 | ||
