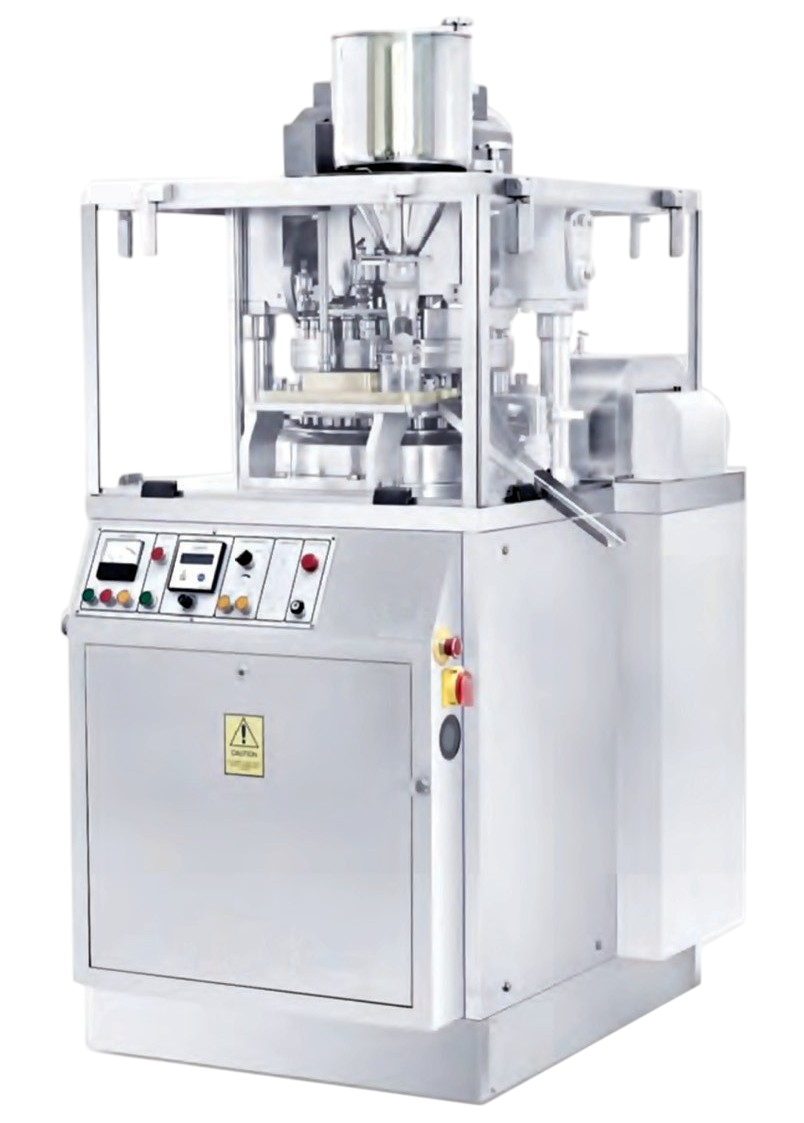

EXPERT B4 – Single Sided Rotary Tablet Press
EXPB4 is a square model, double sided Rotary Tablet Press with promising quality for medium batch production. Safety, Enhanced Performance, Cleanability and Ease of Operation are its most salient features. The machine is extremely reliable and is offered in three different turret configurations (27,35 & 45 stations) with maximum rated output of 216,000 tablets/ hour. Machine comes with electromagnetic clutch device with contact parts of SS 316.& Gravity feading system as a standard.
| Machine Type | EXPB4-D 27 | EXPB4-35 | EXPB4-45 |
|---|---|---|---|
| No. of station | 27 | 35 | 45 |
| Type of tooling | D | B | BB |
| Max. rated output (tablets/hour)* | 129,600 | 168,000 | 216,000 |
| Min. rated output (tablets/hour)* | 58,320 | 75,600 | 97,200 |
| Max. Operating pressure (Tons) | 10 | 6.5 | 6.5 |
| Max. Tablet diameter (mm) | 25 | 16 | 13 |
| Max. Depth of die fill (mm) | 20 | 17 | 17 |
| Max. Tablet thickness (mm) | 8 | ||
| Upper punch penetration (mm) | 3 to 6 | ||
| Main ele. motor (kW / hp) | 3.7 / 5.0 | ||
| Power consumption (kW / hp) | 3.7 / 5.0 | ||
| Power supply: 220 / 380 / 415 / 480 V ± 10%, 3 Ph., 50 / 60 Hz | |||
| Overall dimensions (cm) | 110 W x 129 D x 178 H | ||
| Net weight (kg) | 1483 | ||
| Case dimensions (cm) | 132 W x 155 D x 208 H | ||
| Gross weight (kg) | 1750 | ||
